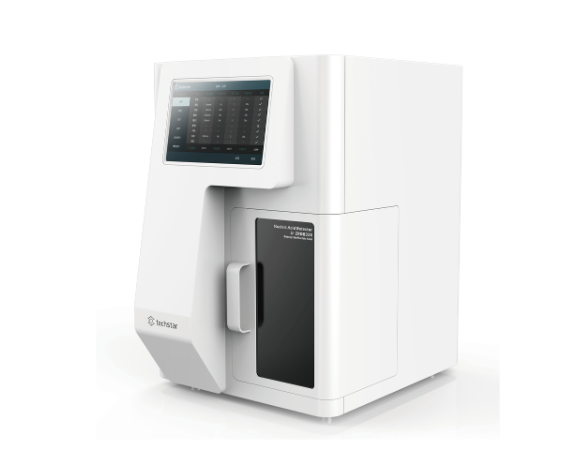

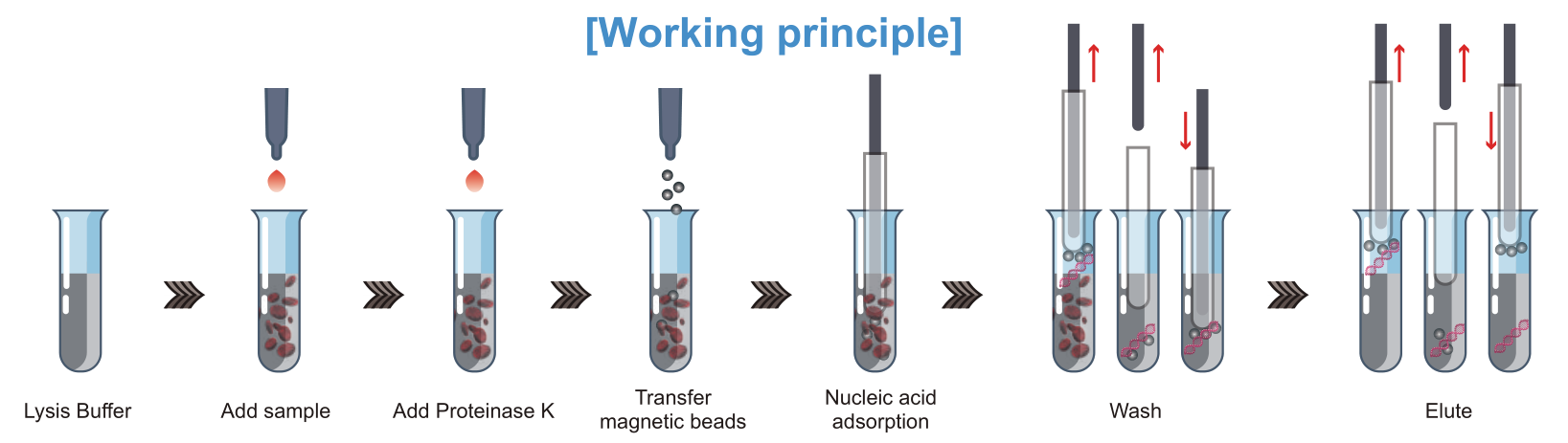

With the latest isolation method of nucleic acid transferred by magnetic rods and preloaded magnetic beads-based extraction reagent, The 701 Nucleic Acid Automatic Extraction System can process 1-12 samples and automatically isolate nucleic acids from various samples such as blood, cells, viruses, etc. The magnetic beads are adsorbed, transferred and released by the special magnetic rod, so as to realize the fully automated purification of nucleic acid.
Unique Magnetic Rod Movement
The driving device is equipped with a high-performance stepping motor, with large magnetic rod vibration amplitude. The vibration amplitude can be set according to the volume of the solution to ensure good and even
blending effect. The actuator is made of ball screw to ensure that the rod runs smoothly, high precision and longer service life of the rod. Each moving component is protected by the limit position protection mechanism to avoid instrument failure.
New Strong Magnetic Rod
With the newly designed strong magnetic rod, the magnetic beads are absorbed on the head of the magnetic rod, so as to ensure that the elution buffer can still cover all the magnetic beads even with a small elution volume. The high recovery of magnetic beads ensures high yield of nucleic acid.

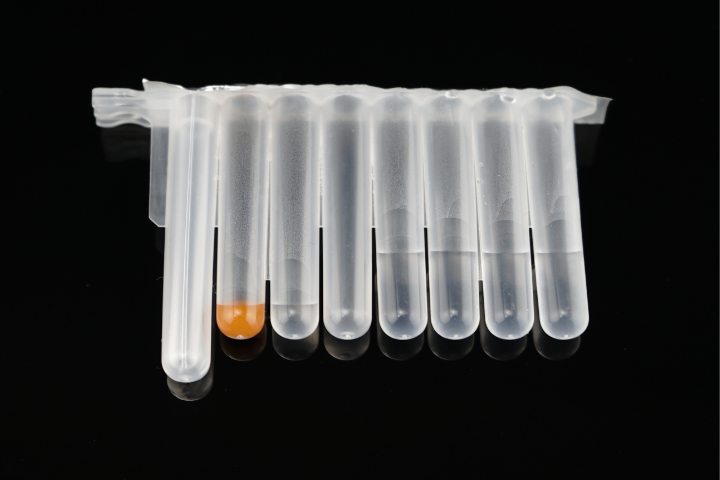

Magnetic Bead-Based Nucleic Acid (DNA/RNA) Extraction Kit
(12-Channel Preloaded Version)
This kit is suitable for TECHSTAR YC701 Nucleic Acid Automatic Extraction System for extracting genomic DNA/RNA of pathogenic microorganisms from samples such as serum, plasma, cultured cells, saliva, alveolar lavage fluid, nasopharyngeal aspirates and swabs.
[Product name] Magnetic Bead-Based Nucleic Acid (DNA/RNA) Extraction Kit
[Packing specification] 50 T/kit
[Transportation condition] Room temperature
[Preservation condition] Room temperature, or 2-8°C for long-term preservation
[Period of validity] 12 months
[Applicable instrument] 701 Nucleic Acid Automatic Extraction System
